使用 EAS 工作流自动化开发构建

添加一个 build.yml

🌐 Add a build.yml

在 .eas/workflows/ 里面，添加一个名为 build.yml 的新文件。它使用 build 作业类型，配合 profile 和 platform 参数来为 Android 和 iOS 创建开发构建。

🌐 Inside .eas/workflows/, add a new file called build.yml. It uses the build job type with profile and platform parameters to create development builds for Android and iOS.

把以下代码添加到 build.yml 文件中：

🌐 Add the following code to the build.yml file:

name: Development builds

jobs:
  build_android:
    name: Build Android
    type: build
    params:
      platform: android
      profile: development
  build_ios:
    name: Build iOS
    type: build
    params:
      platform: ios
      profile: development

我们添加了两个任务：build_android 和 build_ios。它们都是 build 类型的，但平台和构建配置参数不同。

🌐 We add two jobs: build_android and build_ios. Both are of type build with different parameters for platform and build profile.

每个工作的 params 键包括：

🌐 The params key for each job includes:

• platform 设置构建的目标操作系统（android 或 ios）
• profile 指定了我们 eas.json 中的构建配置文件

手动运行工作流

🌐 Run the workflow manually

让我们用命令手动运行这个工作流：

🌐 Let's run the workflow manually using the command:

在EAS仪表板上确认

🌐 Verify on the EAS dashboard

在 EAS 仪表板上，注意在 Workflow graph 标签下显示“Triggered manually”。每当 Trigger 显示 Manual 时，这意味着工作流是通过 eas workflow:run 命令启动的。

🌐 On the EAS dashboard, notice that it says "Triggered manually" under the Workflow graph tab. Any time the Trigger shows Manual, that means the workflow was started with the eas workflow:run command.

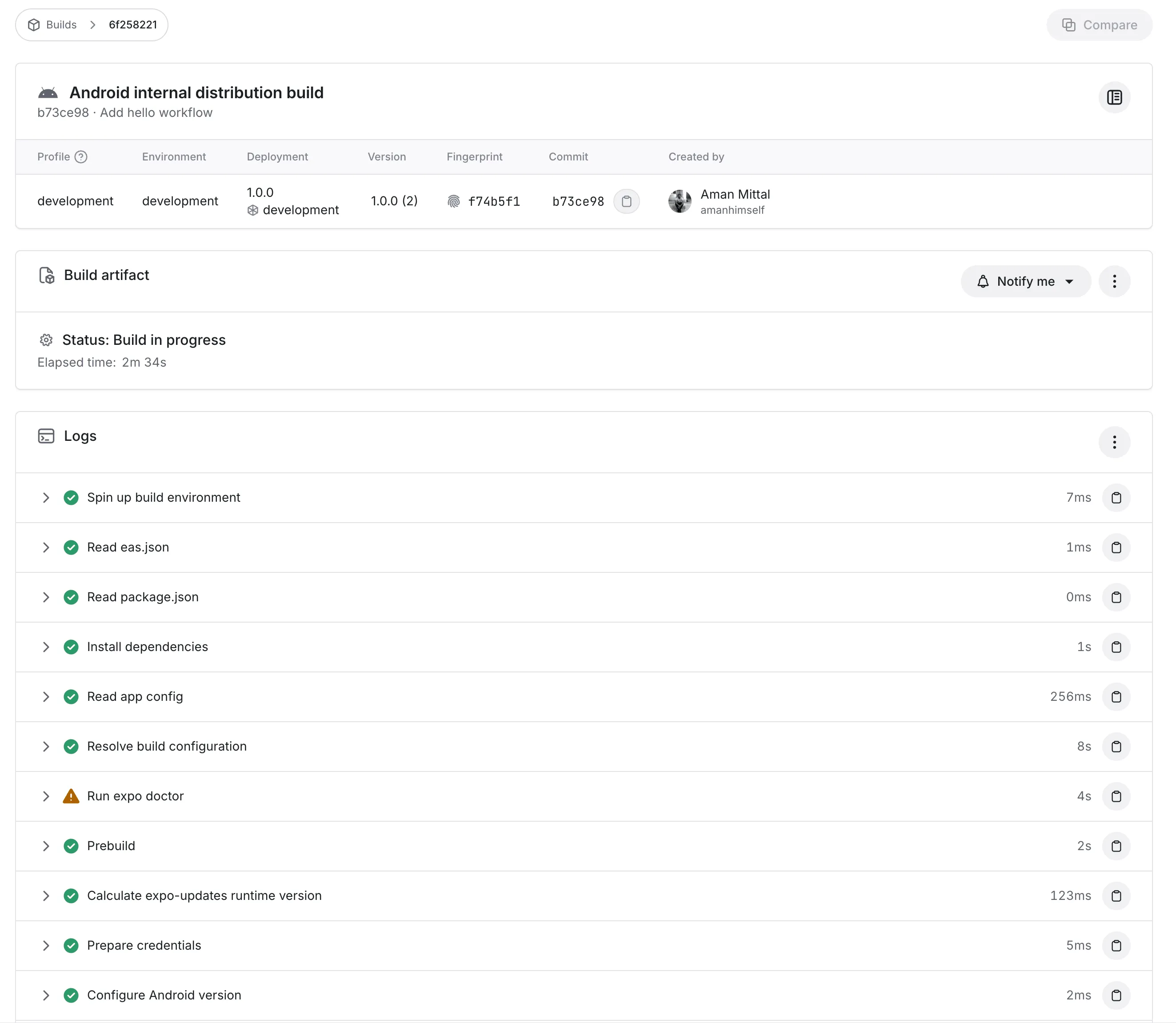

每次构建的日志都会显示在工作流界面里。点击某个构建的 ID 可以打开它的 EAS Build 页面。

🌐 The logs for each build appear inside the workflow interface. Click a build's ID to open its EAS Build page.

重要 在 EAS 工作流程中，没有依赖的作业默认会并行运行。在上面的工作流程中，因为 build_android 和 build_ios 作业都没有任何依赖，它们会同时开始。

在进行下一步之前，先等两个构建都完成。完成后，我们可以使用安装或用 Orbit 打开按钮，或者从Artifacts下载来安装到我们的设备/模拟器/模拟器上。

🌐 Wait for both builds to complete before moving to the next step. Once they complete, we can use the Install or Open with Orbit buttons, or download from Artifacts to install on our device/emulator/simulator.

添加指纹任务

🌐 Add a fingerprint job

fingerprint 预打包任务会对项目的原生特性进行哈希处理，并为每个平台输出一个指纹哈希。environment 字段告诉 EAS 使用哪个 环境变量配置。注意，environment 和 profile 可以同名，但指的是不同的东西。profile 指向 eas.json 中的构建配置文件（如何构建）。environment 指向在 EAS 上配置的环境变量（构建时注入哪些值）。

🌐 The fingerprint pre-packaged job hashes the project's native characteristics and outputs a fingerprint hash for each platform. The environment field tells EAS which environment variable configuration to use. Note that environment and profile can share the same name but refer to different things. profile points to a build profile in eas.json (how to build). environment points to environment variables configured on EAS (which values to inject at build time).

更新 build.yml，在构建任务之前添加 fingerprint 任务：

🌐 Update build.yml to add the fingerprint job before the build jobs:

name: Development builds

jobs:
  fingerprint:
    name: Fingerprint
    type: fingerprint
    environment: development
  build_android:
    # ...
  build_ios:
    # ...

fingerprint 任务会生成两个输出：android_fingerprint_hash 和 ios_fingerprint_hash。我们在下一步使用这些哈希值来检查是否已经存在兼容的构建。

🌐 The fingerprint job produces two outputs: android_fingerprint_hash and ios_fingerprint_hash. We use these hashes in the next step to check if a compatible build already exists.

添加获取构建任务

🌐 Add get-build jobs

get-build 预打包作业会检查指定的指纹哈希和配置是否已有构建存在。如果存在匹配的构建，它会输出一个 build_id。如果没有，build_id 则为空。

🌐 The get-build pre-packaged job checks if a build already exists for a given fingerprint hash and profile. If a matching build exists, it outputs a build_id. If not, build_id is empty.

在我们的工作流文件中，让我们在 fingerprint 和构建任务之间添加 get_android_build 和 get_ios_build 任务。每个任务都使用 needs: [fingerprint] 来等待指纹任务完成并访问其输出：

🌐 In our workflow file, let's add get_android_build and get_ios_build jobs between fingerprint and the build jobs. Each one uses needs: [fingerprint] to wait for the fingerprint job to complete and access its output:

name: Development builds

jobs:
  fingerprint:
    # ...
  get_android_build:
    name: Check for existing Android build
    needs: [fingerprint]
    type: get-build
    params:
      fingerprint_hash: ${{ needs.fingerprint.outputs.android_fingerprint_hash }}
      profile: development
  get_ios_build:
    name: Check for existing iOS build
    needs: [fingerprint]
    type: get-build
    params:
      fingerprint_hash: ${{ needs.fingerprint.outputs.ios_fingerprint_hash }}
      profile: development
  build_android:
    # ...
  build_ios:
    # ...

在上面的工作流程中，get-build 任务使用 ${{ needs.fingerprint.outputs.* }} 表达式语法从上一个任务接收指纹哈希。

🌐 In the above workflow, get-build jobs receive the fingerprint hash from the previous job using the ${{ needs.fingerprint.outputs.* }} expression syntax.

添加条件构建

🌐 Add conditional builds

if 字段控制作业是否运行。表达式 ${{ !needs.get_android_build.outputs.build_id }} 的意思是：只有当 get-build 没有找到匹配的构建时才运行作业。! 是一个取反运算符。如果这个指纹已经有兼容的构建存在，则该构建作业会被跳过。

🌐 The if field controls whether a job runs. The expression ${{ !needs.get_android_build.outputs.build_id }} means: run a job only if get-build did not find a matching build. The ! is a negation operator. If a compatible build already exists for this fingerprint, the build job is skipped.

让我们更新每个构建任务，让它依赖于它的 get-build 任务，并添加 if 条件：

🌐 Let's update each build job to depend on its get-build job and add the if condition:

name: Development builds

jobs:
  fingerprint:
    # ...
  get_android_build:
    # ...
  get_ios_build:
    # ...
  build_android:
    name: Build Android
    needs: [get_android_build]
    if: ${{ !needs.get_android_build.outputs.build_id }}
    type: build
    params:
      platform: android
      profile: development
  build_ios:
    name: Build iOS
    needs: [get_ios_build]
    if: ${{ !needs.get_ios_build.outputs.build_id }}
    type: build
    params:
      platform: ios
      profile: development

添加一个触发器并运行工作流程

🌐 Add a trigger and run the workflow

我们来给工作流添加 on.push 触发器，这样每次推送到 main 时它都会自动运行：

🌐 Let's add the on.push trigger to the workflow so it runs automatically on every push to main:

name: Development builds

on:
  push:
    branches: ['main']

jobs:
  fingerprint:
    name: Fingerprint
    type: fingerprint
    environment: development
  get_android_build:
    name: Check for existing Android build
    needs: [fingerprint]
    type: get-build
    params:
      fingerprint_hash: ${{ needs.fingerprint.outputs.android_fingerprint_hash }}
      profile: development
  get_ios_build:
    name: Check for existing iOS build
    needs: [fingerprint]
    type: get-build
    params:
      fingerprint_hash: ${{ needs.fingerprint.outputs.ios_fingerprint_hash }}
      profile: development
  build_android:
    name: Build Android
    needs: [get_android_build]
    if: ${{ !needs.get_android_build.outputs.build_id }}
    type: build
    params:
      platform: android
      profile: development
  build_ios:
    name: Build iOS
    needs: [get_ios_build]
    if: ${{ !needs.get_ios_build.outputs.build_id }}
    type: build
    params:
      platform: ios
      profile: development

假设我们对 Expo 项目做了一些 TypeScript/JavaScript 的更改，比如修改按钮的颜色或更新屏幕上的文字。完成这些后，我们可以将提交推送到 main 分支，从我们的 GitHub 仓库触发工作流：

🌐 Let's assume we made some TypeScript/JavaScript changes to our Expo project, like changing a button's color or updating the text on a screen. After doing so, we can push a commit to the main branch to trigger the workflow from our GitHub repository:

这会触发一个新的工作流，几秒钟内就完成了。在 EAS 仪表板上，Android 和 iOS 的构建都会被跳过，因为在前一部分已经存在一个匹配的构建。

🌐 This triggers a new workflow that completes in seconds. On the EAS dashboard, both Android and iOS builds are skipped because a matching build already exists from the previous section.

我们从 main 分支拉取最新代码，然后运行 npx expo start。现有的开发构建会获取 JS 的更改。

🌐 We pull the latest from the main branch and run npx expo start. The existing development build picks up the JS changes.

为单元测试添加自定义任务

🌐 Add a custom job for unit tests

在我们的 build.yml 工作流文件中，让我们添加一个自定义任务，在构建开始之前运行单元测试：

🌐 In our build.yml workflow file, let's add a custom job that runs unit tests before the builds start:

name: Development builds

on:
  push:
    branches: ['main']

jobs:
  run_tests:
    name: Run unit tests
    steps:
      - uses: eas/checkout # Check out the repo
      - uses: eas/install_node_modules
      - run: npx jest --ci
  fingerprint:
    name: Fingerprint
    needs: [run_tests]
    type: fingerprint
    environment: development
  get_android_build:
    # ...
  get_ios_build:
    # ...
  build_android:
    # ...
  build_ios:
    # ...

自定义 run_tests 任务会执行以下操作：

🌐 The custom run_tests job does the following:

• uses: eas/checkout 会从 GitHub 仓库检出项目源文件。自定义作业会在新的虚拟机上运行，所以默认情况下是无法使用代码的。在访问任何项目文件之前，需要先执行这一步骤。
• uses: eas/install_node_modules 使用项目中检测到的包管理器（bun、npm、pnpm 或 Yarn）来安装依赖。在运行依赖 node_modules 中的包的任何命令之前，比如 Jest，这是必须的。
• run: npx jest --ci 执行测试套件。run 键运行任何 shell 命令，类似于 echo 命令。--ci 标志告诉 Jest 以 CI 模式运行，这会跳过对文件变化的监听，并在运行所有测试后退出。

现在，fingerprint 任务有了 needs: [run_tests]，所以它只有在测试通过后才会运行。如果测试失败，EAS 会跳过剩下的工作流程。

🌐 Now, the fingerprint job has needs: [run_tests], so it only runs after the tests pass. If tests fail, EAS skips the rest of the workflow.

触发工作流程

🌐 Trigger the workflow

提交并推送更新后的工作流以及测试文件到 main:

🌐 Commit and push the updated workflow along with the test file to main:

触发工作流后，打开 EAS 仪表板，看看我们工作流中作业的流动情况。

🌐 After triggering the workflow, open the EAS dashboard and notice the flow of the jobs inside our workflow.
