学习如何使用 Maestro 在 EAS 工作流程中使用 Android 和 iOS 开发构建自动化端到端（E2E）测试。

因为审查者无法在每次拉取请求上运行应用，所以破碎的导航流程和崩溃的屏幕经常会漏过代码审查。

🌐 Broken navigation flows and crashing screens often slip past code review because reviewers cannot run the app on every pull request.

学习成果

🌐 Learning outcomes

• 为导航和屏幕内容测试编写 Maestro 流程文件
• 在工作流中对 Android 和 iOS 开发版 运行端到端测试
• 在拉取请求中使用 on.pull_request 自动触发端到端测试，或者使用 on.pull_request_labeled 按需触发

重要 EAS 工作流程中的 Maestro 工作类型目前处于 alpha 阶段。

为什么 E2E 测试有用？

🌐 Why are E2E tests useful?

前几章的流水线会构建我们的项目并提供更新，还会发 Slack 通知。不过，导航流程出错或者某个屏幕崩溃仍然可能悄悄上线。端到端测试可以通过模拟真实用户操作并验证应用是否按预期运行，帮助在上线前捕获这些问题。

🌐 The pipeline from previous chapters builds our project and delivers updates, with Slack notifications. However, a broken navigation flow or a crashing screen can still make it to production silently. E2E tests can help catch these issues before they reach production by simulating real user interactions and verifying that the app behaves as expected.

Maestro 在 Android 模拟器或 iOS 模拟器上对已构建的应用运行自动化流程。它可以点击按钮、输入文字、验证屏幕内容，以及在各个屏幕之间导航。EAS 工作流会在构建好 Android 的 APK 或 iOS 模拟器构建之后，在云端运行这些流程。

设置端到端测试

🌐 Set up E2E tests

对于 Android 和 iOS，我们需要为 E2E 测试添加一个特殊的 构建配置文件。这个配置文件会跳过 Android 的凭证设置，并允许在模拟器中运行我们的 iOS 构建。

🌐 For Android and iOS, we need to add a special build profile for E2E tests. This profile skips credential setup for Android and allows running our iOS build inside a simulator.

{
  %%placeholder-start%%... %%placeholder-end%%
  "build": {
    "e2e-test": {
      "withoutCredentials": true,
      "android": {
        "buildType": "apk",
        "image": "latest"
      },
      "ios": {
        "simulator": true,
        "image": "latest"
      }
    }
  }
}

appId: com.yourname.yourapp # Replace with your app's package name/bundle identifier from app config file
---
- launchApp
- assertVisible: 'Welcome'

appId: com.yourname.yourapp # Replace with your app's package name/bundle identifier from app config file
---
- launchApp
- tapOn: 'Settings'
- assertVisible: 'Settings'

为端到端测试创建一个工作流程

🌐 Create a workflow for E2E tests

name: E2E Tests

jobs:
  build_android:
    name: Build Android for E2E
    type: build
    params:
      platform: android
      profile: e2e-test
  build_ios:
    name: Build iOS for E2E
    type: build
    params:
      platform: ios
      profile: e2e-test
  test_android:
    name: Run Maestro tests (Android)
    needs: [build_android]
    type: maestro
    params:
      build_id: ${{ needs.build_android.outputs.build_id }}
      flow_path: ['.maestro/home.yml', '.maestro/navigate.yml']
  test_ios:
    name: Run Maestro tests (iOS)
    needs: [build_ios]
    type: maestro
    params:
      build_id: ${{ needs.build_ios.outputs.build_id }}
      flow_path: ['.maestro/home.yml', '.maestro/navigate.yml']

2

手动运行工作流

🌐 Run the workflow manually

使用 eas workflow:run 命令手动运行工作流：

🌐 Use the eas workflow:run command to run the workflow manually:

Terminal

复制

- eas workflow:run .eas/workflows/e2e-tests.yml

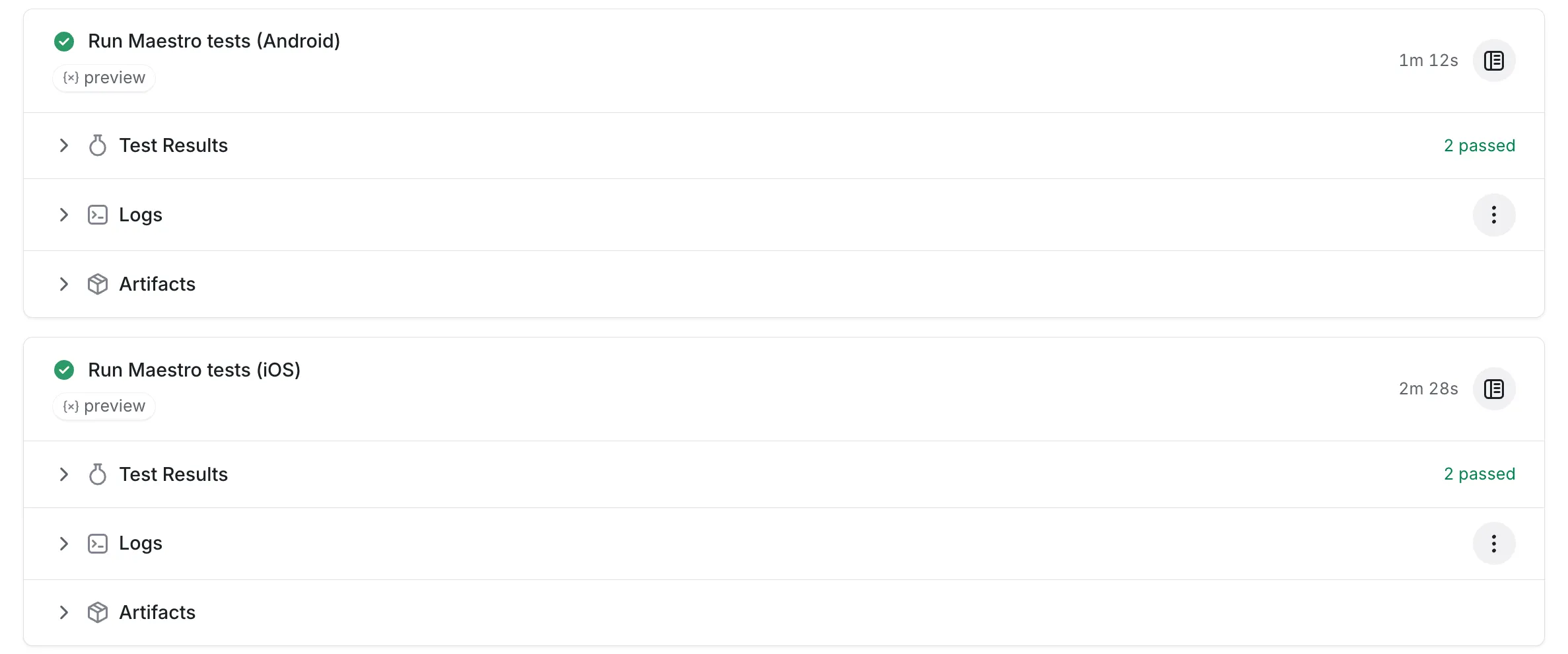

在 EAS 仪表板上，你会注意到 Android 和 iOS 构建是并行开始的。每个构建完成后，相应的 Maestro 测试任务会对其运行流程文件。

🌐 On the EAS dashboard, notice that the Android and iOS builds start in parallel. Once each build completes, the corresponding Maestro test job runs the flow files against it.

自动触发端到端测试

🌐 Trigger E2E tests automatically

到目前为止，我们都是手动运行这个工作流的。我们可以通过 GitHub 事件触发它，这样它就会在每次拉取请求时运行，或者根据拉取请求标签按需运行。

🌐 So far we've run the workflow manually. We can trigger it from GitHub events so it runs on every pull request or on demand with a pull request label.

在每个拉取请求时运行

🌐 Run on every pull request

要在每个拉取请求上运行端到端测试，在工作流中添加一个 on.pull_request 触发器：

🌐 To run E2E tests on every pull request, add an on.pull_request trigger to the workflow:

on:
  pull_request:
    branches: ['*']

按需运行标签

🌐 Run on demand with a label

要仅在需要时运行 E2E 测试，可以使用 on.pull_request_labeled 触发器。它接受一个 labels 参数，并且只有当有人向拉取请求添加这些标签之一时，工作流才会运行。例如，我们可以使用 test 标签来触发我们的 E2E 测试工作流：

🌐 To run E2E tests only when needed, use the on.pull_request_labeled trigger. It accepts a labels parameter, and the workflow only runs when someone adds one of those labels to a pull request. For example, we can use the test label to trigger our E2E tests workflow:

on:
  pull_request_labeled:
    labels: ['test']

概括

🌐 Summary

In the next chapter, learn how to create a production workflow with fingerprinting and OTA updates.
