在 EAS 工作流和 Maestro 上运行端到端测试

设置你的项目

🌐 Set up your project

如果你还没有这样做，请创建一个新项目并将其与 EAS 同步。

🌐 If you haven't already, create a new project and sync it with EAS.

请按照 使用 EAS 工作流入门指南 创建一个新项目并将其与 EAS 同步。然后，配置你的项目 并关联你的 GitHub 仓库。

🌐 Follow the Get started with EAS Workflows guide to create a new project and sync it with EAS. Then, configure your project and link your GitHub repository.

添加示例 Maestro 测试用例

🌐 Add example Maestro test cases

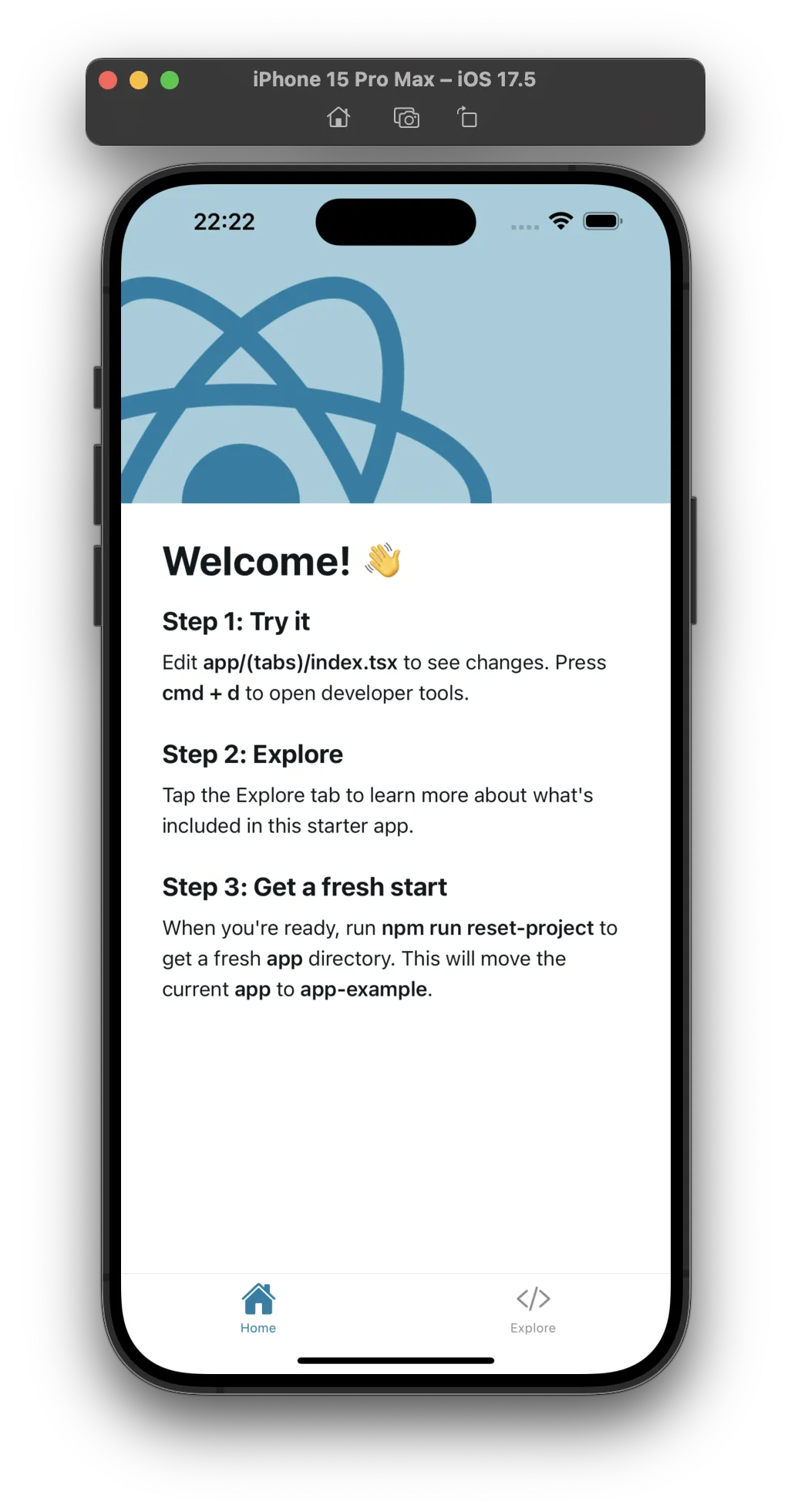

这是使用默认 Expo 模板创建的应用的界面样子：

🌐 This is what the UI of the app created from the default Expo template looks like:

让我们为示例应用创建两个简单的 Maestro 流程。首先，在项目目录的根目录下创建一个名为 .maestro 的文件夹。该文件夹将包含你将要配置的流程，并且应与 eas.json 位于同一层级。

🌐 Let's create two simple Maestro flows for the example app. Start by creating a directory called .maestro in the root of your project directory. This directory will contain the flows you'll configure and should be at the same level as eas.json.

在其中，创建一个名为 home.yml 的新文件。这个流程将启动应用，并断言在主屏幕上可以看到“Welcome!”这段文字。

🌐 Inside, create a new file called home.yml. This flow will launch the app and assert that the text "Welcome!" is visible on the home screen.

appId: dev.expo.eastestsexample # This is an example app id. Replace it with your app id.
---
- launchApp
- assertVisible: 'Welcome!'

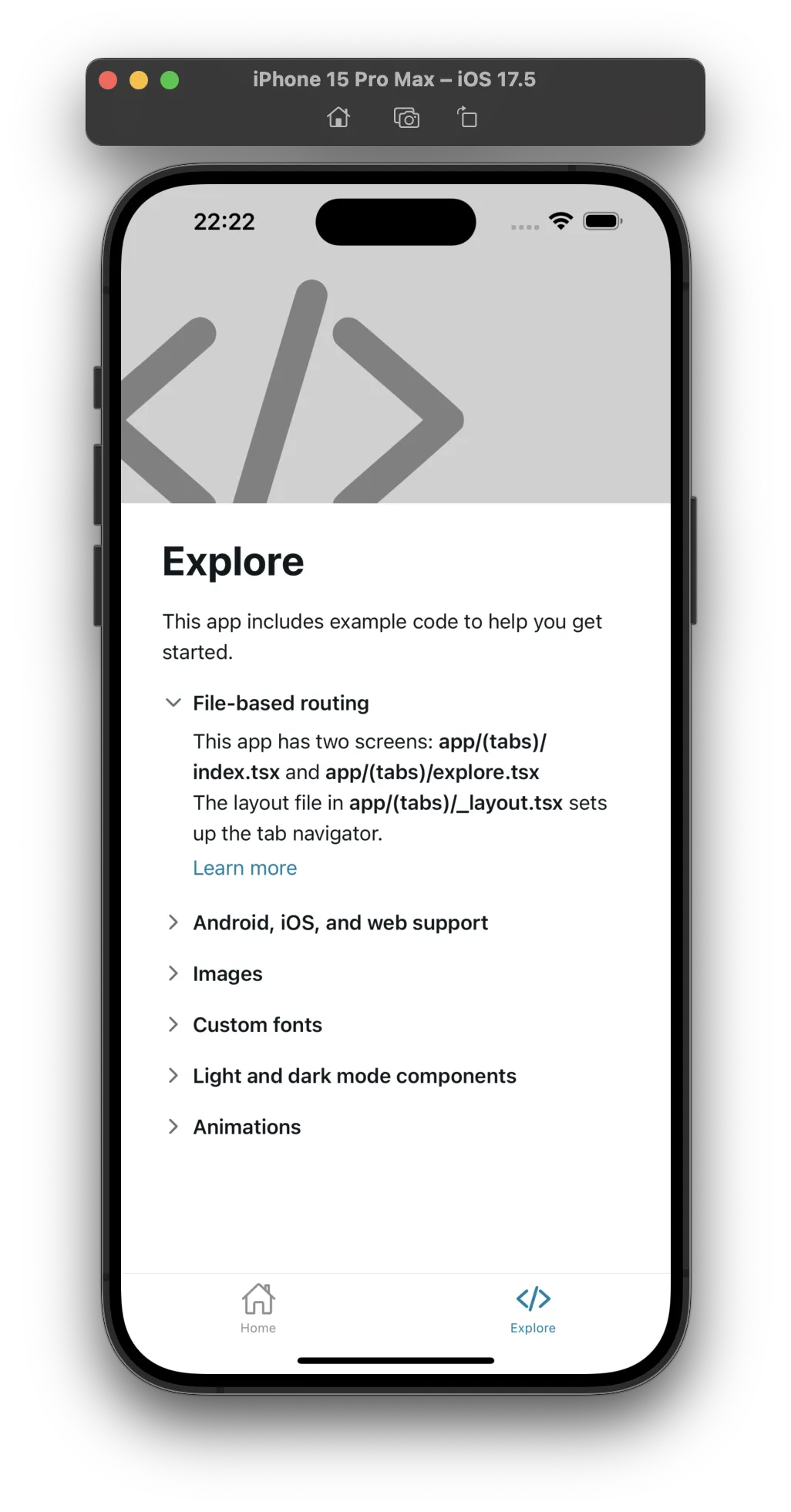

接下来，创建一个名为 expand_test.yml 的新流程。该流程将在示例应用中打开“探索”屏幕，点击“基于文件的路由”可折叠部分，并断言屏幕上可见文本“此应用有两个屏幕。”

🌐 Next, create a new flow called expand_test.yml. This flow will open the "Explore" screen in the example app, click on the "File-based routing" collapsible, and assert that the text "This app has two screens." is visible on the screen.

appId: dev.expo.eastestsexample # This is an example app id. Replace it with your app id.
---
- launchApp
- tapOn: 'Explore.*'
- tapOn: '.*File-based routing'
- assertVisible: 'This app has two screens.*'

在本地运行 Maestro 测试（可选）

🌐 Run Maestro tests locally (optional)

要在本地运行 Maestro 测试，请按照 安装 Maestro 中的说明安装 Maestro CLI。

🌐 To run Maestro tests locally, install the Maestro CLI by following the instructions in Installing Maestro.

在本地 Android 模拟器或 iOS 模拟器上安装你的应用。打开终端，导航到 Maestro 目录，并运行以下命令以使用 Maestro CLI 启动测试：

下方视频展示了 .maestro/expand_test.yml 流程的成功运行：

🌐 The video below shows a successful run of the .maestro/expand_test.yml flow:

为端到端测试建立配置文件

🌐 Build profile for E2E tests

端到端测试需要一个已构建的应用文件：Android 的 .apk 或 iOS 的 .app —— EAS 可以在模拟器/模拟器上安装并测试该文件。

🌐 E2E tests require a built app file: .apk for Android or .app for iOS — that EAS can install and test on an emulator/simulator.

在你的 eas.json 文件中，为 E2E 测试创建一个构建配置。如果文件不存在，运行 eas build:configure 来生成它。

🌐 In your eas.json file, create a build profile for E2E tests. If the file doesn't exist, run eas build:configure to generate it.

{
  "build": {
    "e2e-test": {
      "withoutCredentials": true,
      "ios": {
        "simulator": true
      },
      "android": {
        "buildType": "apk"
      }
    }
  }
}

上述构建配置会为 Android 创建 .apk 文件，为 iOS 创建 .app 文件。工作流程使用此配置在 EAS 服务器上构建应用。

🌐 The above build profile creates an .apk for Android and an .app for iOS. The workflow uses this profile to build the app on EAS servers.

创建一个端到端测试工作流

🌐 Create an E2E test workflow

在你的项目根目录下，创建一个 .eas/workflows 目录。然后，为你的端到端测试工作流添加一个 YAML 文件，例如 .eas/workflows/e2e-test-android.yml。

🌐 At the root of your project, create an .eas/workflows directory. Then, add a YAML file for your E2E test workflow, such as .eas/workflows/e2e-test-android.yml.

name: e2e-test-android

on:
  pull_request:
    branches: ['*'] # Run the E2E test workflow on every pull request.
jobs:
  build_android_for_e2e:
    type: build
    params:
      platform: android
      profile: e2e-test # your eas build profile for E2E test

  maestro_test:
    needs: [build_android_for_e2e]
    type: maestro
    params:
      build_id: ${{ needs.build_android_for_e2e.outputs.build_id }}
      flow_path: ['.maestro/home.yml', '.maestro/expand_test.yml']

此工作流程使用上一步的 e2e-test 构建配置为 Android 构建 .apk。然后，它在构建好的 APK 上运行 .maestro/home.yml 流程。

🌐 This workflow builds an .apk for Android using the e2e-test build profile from the previous step. Then it runs the .maestro/home.yml flow on the built APK.

这是一个针对 iOS 的相同测试工作流程示例：

🌐 Here's an example of the same test workflow for iOS:

name: e2e-test-ios

on:
  pull_request:
    branches: ['*']

jobs:
  build_ios_for_e2e:
    type: build
    params:
      platform: ios
      profile: e2e-test # your eas build profile for E2E test

  maestro_test:
    needs: [build_ios_for_e2e]
    type: maestro
    params:
      build_id: ${{ needs.build_ios_for_e2e.outputs.build_id }}
      flow_path: ['.maestro/home.yml', '.maestro/expand_test.yml']

了解更多关于 EAS 工作流程语法 的信息。

🌐 Learn more about Syntax for EAS Workflows.

运行 E2E 测试工作流程

🌐 Run the E2E test workflow

你可以通过两种方式运行 E2E 测试工作流程：

🌐 You can run the E2E test workflow in two ways:

1. 手动使用 EAS CLI

2. 当你打开拉取请求时自动

该工作流使用 pull_request 触发器，当有人向你的仓库提交拉取请求时会自动运行。了解有关 EAS 工作流触发器 的更多信息。

🌐 The workflow uses a pull_request trigger to run automatically when someone opens a pull request to your repository. Learn more about EAS Workflow triggers.

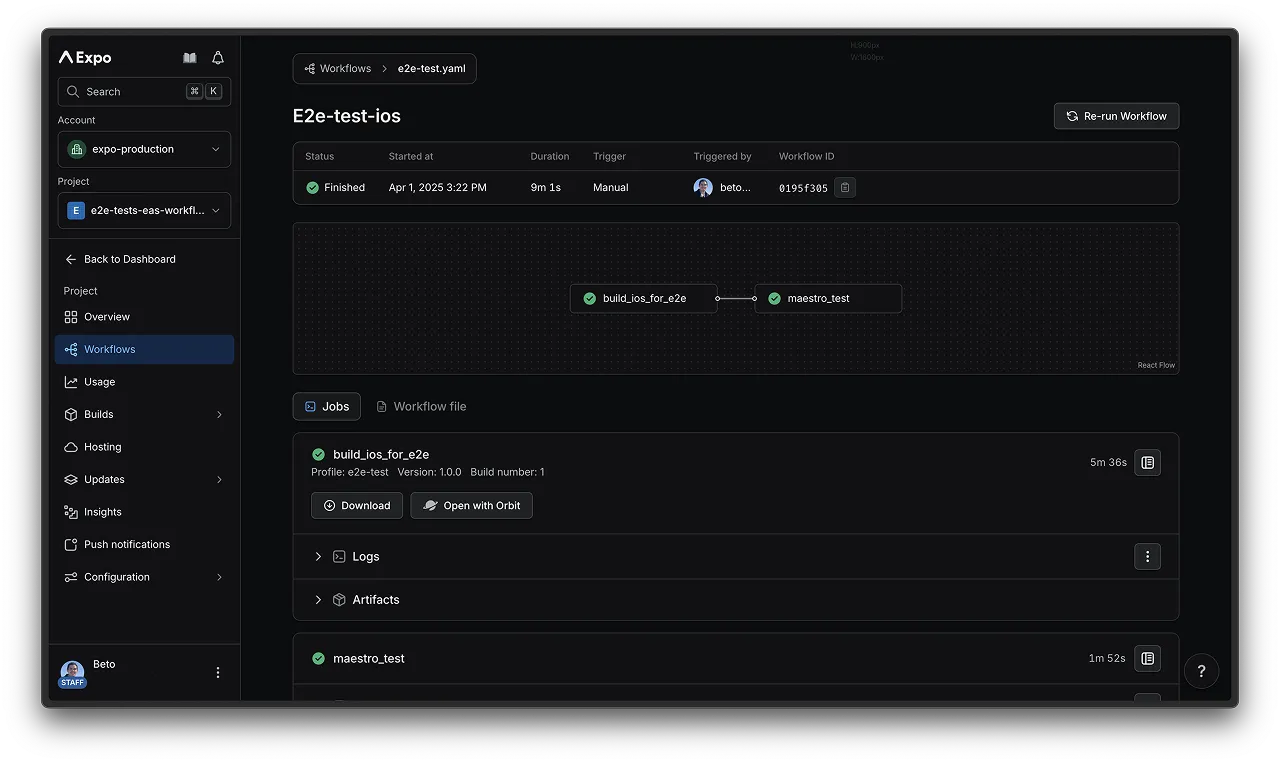

工作流启动后，你可以在 EAS 仪表板中跟踪其进度并查看结果。以下是已完成工作流运行的截图：

🌐 After the workflow starts, you can track its progress and view the results in the EAS dashboard. Here's a screenshot of a completed workflow run:
