滑块

用于从一个范围中选择值的 SwiftUI 滑块组件。

iOS

Included in Expo Go

Recommended version:

~57.0.3

信息有关跨平台使用，请参阅通用 Slider —— 它会根据平台呈现相应的原生组件。

Expo UI 滑块与官方 SwiftUI Slider API 相匹配，并允许从有界范围中选择值。

🌐 Expo UI Slider matches the official SwiftUI Slider API and allows selecting values from a bounded range.

Slider with brightness icons on either side, in a Form section

安装

🌐 Installation

Terminal

- npx expo install @expo/ui

If you are installing this in an existing React Native app, make sure to install expo in your project.

用法

🌐 Usage

注意： Slider 是一个可调整宽度的组件，它会扩展以填充可用的水平空间，并且没有固有宽度。在 Host 上使用 matchContents 时，应该在 Slider 上应用 frame 修饰符以赋予它一个明确的宽度。或者，可以通过 style（例如 style={{ width: 300 }} 或 style={{ flex: 1 }}）为 Host 指定明确的尺寸，或者将 Slider 放置在提供宽度约束的 SwiftUI 容器中，例如 Form。

基础滑块

🌐 Basic slider

BasicSliderExample.tsx

import { useState } from 'react';
import { Host, Slider } from '@expo/ui/swift-ui';

export default function BasicSliderExample() {
  const [value, setValue] = useState(0.5);

  return (
    <Host style={{ flex: 1 }}>
      <Slider value={value} onValueChange={setValue} />
    </Host>
  );
}

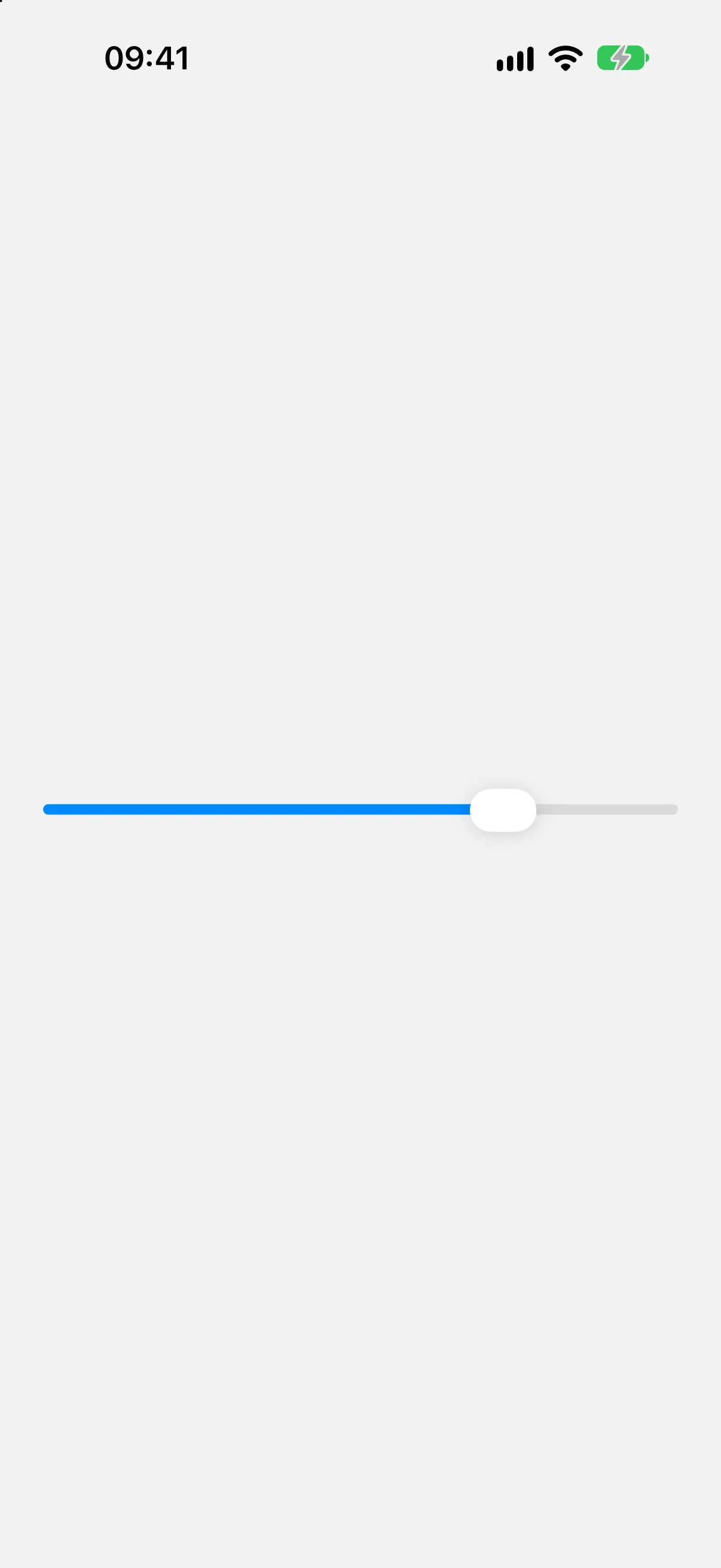

自定义范围滑块

🌐 Slider with custom range

CustomRangeSliderExample.tsx

import { useState } from 'react';
import { Host, Slider } from '@expo/ui/swift-ui';

export default function CustomRangeSliderExample() {
  const [value, setValue] = useState(50);

  return (
    <Host style={{ flex: 1 }}>
      <Slider value={value} min={0} max={100} onValueChange={setValue} />
    </Host>
  );
}

带步长的滑块

🌐 Slider with step

使用 step 属性定义离散增量。将 step 设置为 0 以获得连续值。

🌐 Use the step prop to define discrete increments. Set step to 0 for continuous values.

SteppedSliderExample.tsx

import { useState } from 'react';
import { Host, Slider } from '@expo/ui/swift-ui';

export default function SteppedSliderExample() {
  const [value, setValue] = useState(0);

  return (
    <Host style={{ flex: 1 }}>
      <Slider value={value} min={0} max={100} step={10} onValueChange={setValue} />
    </Host>
  );
}

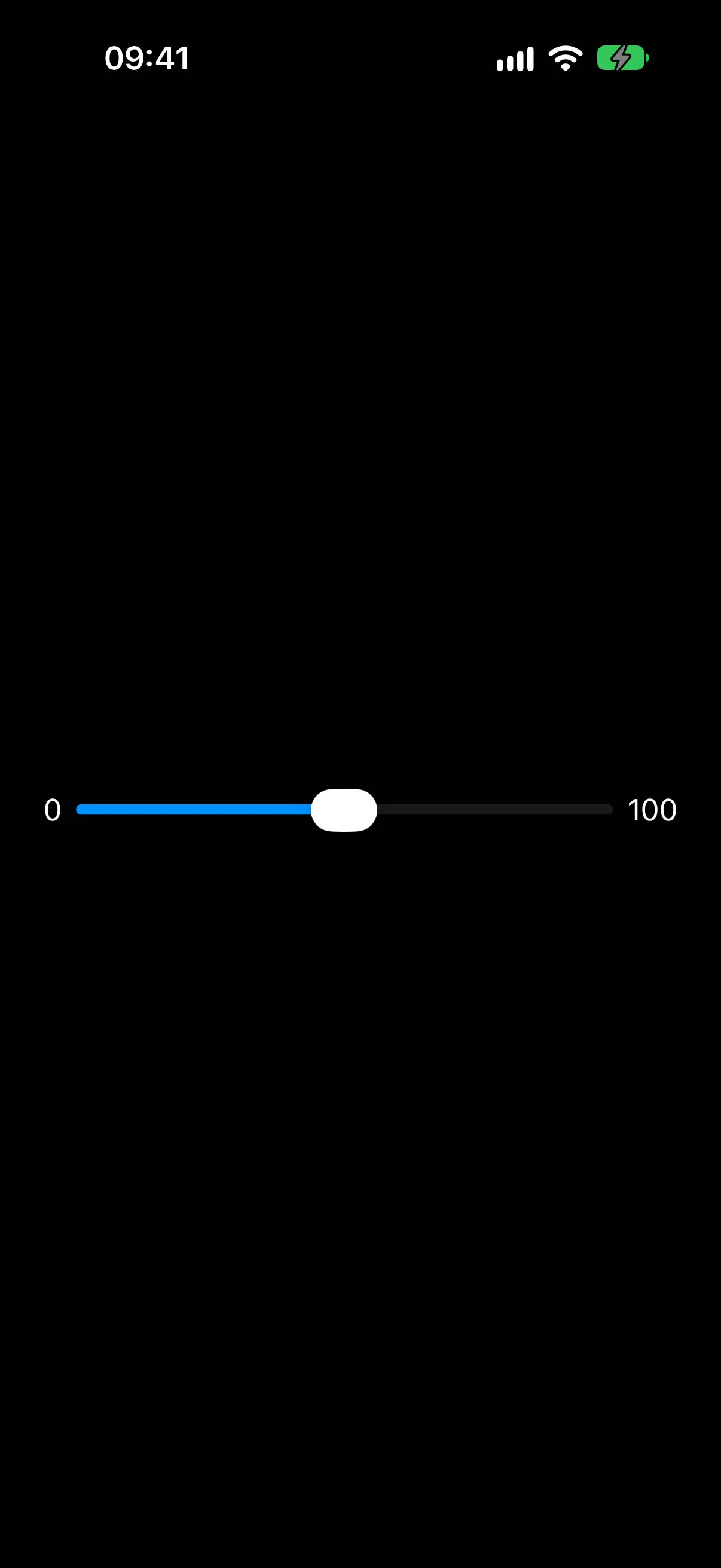

带标签的滑块

🌐 Slider with labels

你可以添加标签来描述滑块的用途，并标记最小值和最大值的位置。

🌐 You can add labels to describe a slider's purpose and to mark the minimum and maximum value positions.

LabeledSliderExample.tsx

import { useState } from 'react';
import { Host, Slider, Text } from '@expo/ui/swift-ui';

export default function LabeledSliderExample() {
  const [value, setValue] = useState(50);

  return (
    <Host style={{ flex: 1 }}>
      <Slider
        value={value}
        min={0}
        max={100}
        label={<Text>Volume</Text>}
        minimumValueLabel={<Text>0</Text>}
        maximumValueLabel={<Text>100</Text>}
        onValueChange={setValue}
      />
    </Host>
  );
}

应用接口

🌐 API

import { Slider } from '@expo/ui/swift-ui';

Component

`Slider`

Type: React.Element<SliderProps>

SliderProps

`label`

Optional • Type: ReactNode

A label describing the slider's purpose.

`lowerLimit`

Optional • Type: number

Lower limit the user can drag the thumb to. The visible track still spans min..max, but the thumb stops at lowerLimit during drag.

`max`

Optional • Type: number

The maximum value of the slider. Updating this value does not trigger callbacks if the current value is above max.

`maximumValueLabel`

Optional • Type: ReactNode

A label displayed at the maximum value position.

`min`

Optional • Type: number

The minimum value of the slider. Updating this value does not trigger callbacks if the current value is below min.

`minimumValueLabel`

Optional • Type: ReactNode

A label displayed at the minimum value position.

`onEditingChanged`

Optional • Type: (isEditing: boolean) => void

Callback triggered when the user starts or ends editing the slider.

`onValueChange`

Optional • Type: (value: number) => void

Callback triggered on dragging along the slider.

`step`

Optional • Type: number

The step increment for the slider.

`upperLimit`

Optional • Type: number

Upper limit the user can drag the thumb to. The visible track still spans min..max, but the thumb stops at upperLimit during drag.

`value`

Optional • Type: number

The current value of the slider.

Inherited Props

CommonViewModifierProps
